ECU Cloning Basics: Step-by-Step Theme 70
This theme guides you through the process of cloning an ECU by transferring EEPROM and flash data, allowing you to replace a damaged ECU with a working copy.
Step 1: Read the text
ECU cloning is the process of copying all data from one ECU to another, creating an exact duplicate.
This is useful when replacing a damaged ECU while keeping immobilizer, VIN, and coding intact.
The process involves reading EEPROM and flash memory from the original ECU and writing it to the donor unit.
Tools like K-TAG, KT200, or Magic Motorsport Flex in Boot or Bench mode are commonly used.
Accuracy is critical—incorrect transfers or mismatched ECUs can prevent the vehicle from starting.
Step 2: Estimated Cost & Earnings
Used in: ECU replacement, data transfer, immobilizer preservation, professional cloning services
Typical service value: €200 – €500
Estimated time: 1 – 3 hours
Potential per day: €400 – €1000
Step 3: Watch the video
Step 4: Watch the video
Step 5: Common Mistakes to Avoid
These are the most common mistakes when performing ECU cloning.
❌ Copying only EEPROM without flash (or vice versa)
⚠️ Result: ECU may not function correctly or vehicle may not start.
✅ Correct way: Always clone both EEPROM and flash when required for full compatibility.
❌ Using incompatible donor ECU
⚠️ Result: Communication issues, no start condition, or malfunctioning systems.
✅ Correct way: Match part numbers, hardware version, and software type before cloning.
❌ Not verifying data after writing
⚠️ Result: Hidden errors in data that can cause intermittent faults or startup issues.
✅ Correct way: Always verify written data and, if possible, re-read the ECU to confirm a successful clone.
Step 6: Pass the test
What is the first step in the ECU cloning process?
Step 7: Pass the test
Choose the correct word to complete the sentence:
The first step in ECU cloning is to .
Step 8: Pass the test
Decide if the statement is True or False, then press Check answer.
Step 9: Buy a tool

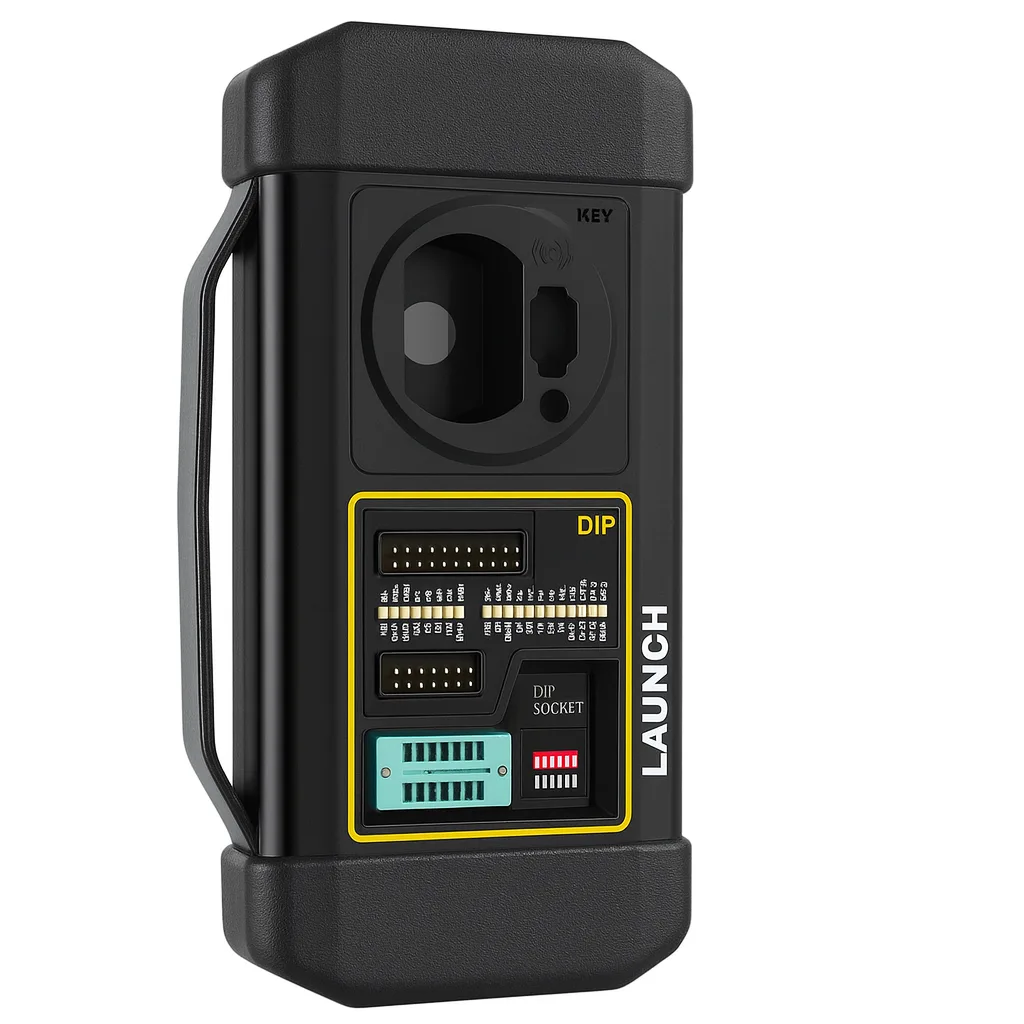

After this lesson, we recommend you look for the Launch X-PROG. It’s a professional automotive programmer designed for reading and writing EEPROMs, microcontrollers, and vehicle modules. Perfect for ECU repair, immobilizer work, dashboard data handling, and advanced programming tasks in modern vehicles.
