Diagnosing Electrical Drains (Parasitic Draws) Theme 18
This theme teaches you how to detect and isolate parasitic current drains that can drain the battery overnight, using tools like a multimeter and fuse pull method.
Step 1: Read the text
Parasitic drains happen when an electrical component keeps drawing power after the car is turned off.
This can slowly discharge the battery and cause starting problems.
Common causes include faulty modules, lights that don’t turn off, or stuck relays.
To diagnose a drain, use a multimeter in series with the battery to measure current draw.
Finding and fixing the source helps prevent battery failure and ensures vehicle reliability.
Step 2: Estimated Cost & Earnings
Used in: battery drain diagnosis, fault tracing, module testing
Typical service value: €150 – €400
Estimated time: 1 – 3 hours
Potential per day: €300 – €900
Step 3: Watch the Introduction Video
Step 4: Watch the video
Step 5: Common Mistakes to Avoid
Avoid these common mistakes when diagnosing parasitic battery drains.
❌ Measuring current draw without waiting for modules to sleep
⚠️ Result: False high readings and incorrect diagnosis.
✅ Correct way: Wait several minutes until all modules go into sleep mode before measuring.
❌ Removing battery terminals during testing incorrectly
⚠️ Result: Loss of memory or interruption of accurate readings.
✅ Correct way: Connect the multimeter in series properly without breaking the circuit suddenly.
❌ Not isolating circuits when searching for the drain
⚠️ Result: Difficulty identifying the faulty component.
✅ Correct way: Remove fuses one by one to isolate the circuit causing the drain.
Step 6: Pass the test
What is a parasitic draw in a vehicle’s electrical system?
Step 7: Pass the test
Choose the correct word to complete the sentence:
A normal parasitic draw current should be very to prevent battery drain.
Step 8: Pass the test
Decide if the statement is True or False, then press Check answer.
Step 9: Buy a tool

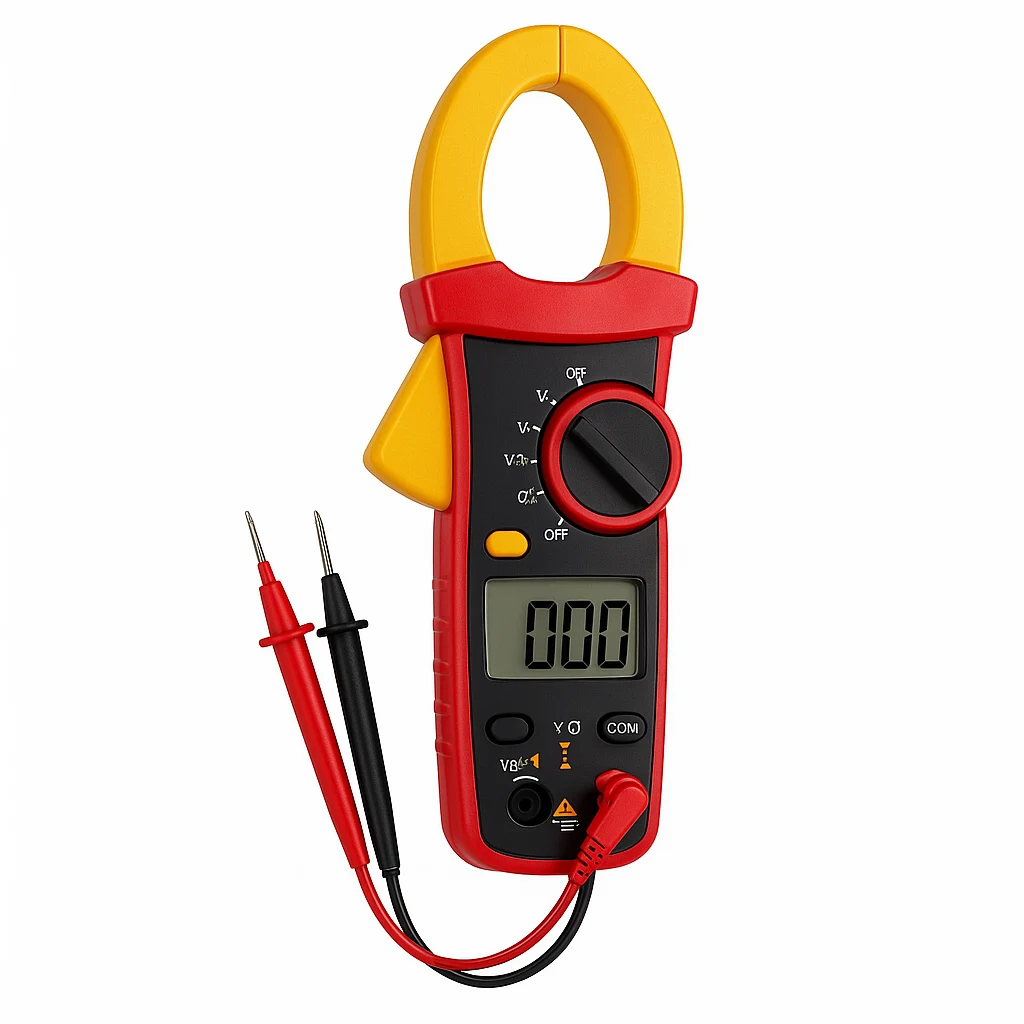

After this lesson, we recommend you search for a clamp meter. It allows you to measure current flow without disconnecting wires, making it ideal for diagnosing parasitic draws and electrical leaks. A clamp meter saves time and ensures non-invasive, accurate current testing.
Step 10: Check Your Knowledge
If you cannot check all boxes — review the lesson again before moving on.
